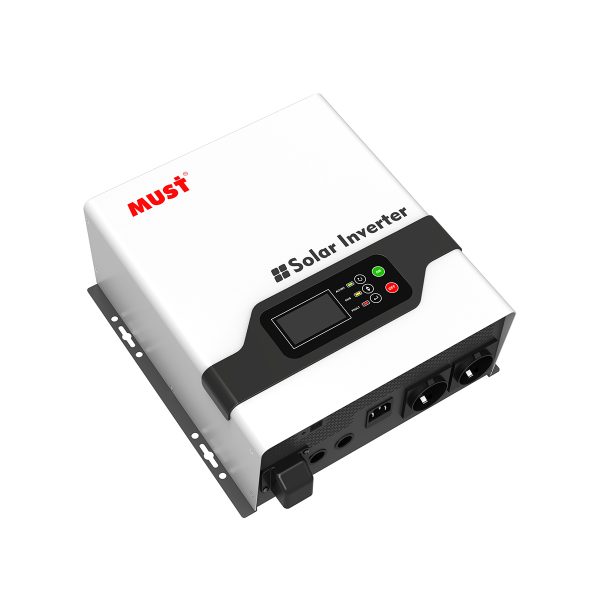

Features:
? Pure sine wave output
? Built-in 50A PWM solar charge controller
? Smart LCD setting ( frequency , charge voltage, charge current, etc).
? Overload and short-circuit protection
? Deep discharge protection
? Cold start function
? Support USB/RS232 monitoring function
Specification:
| MODEL | PV20-1012 PK | PV20-1512 PK | PV20-2024 PK |
|---|---|---|---|
| Battery Input Voltage Rating | 12VDC | 24VDC | |
| INVERTER OUTPUT | |||
| Rated Power | 1000VA/700W | 1500VA/900W | 2000VA/1200W |
| Instantaneous Power Drawn | 2100VA | 2700VA | 3600VA |
| Output Waveform | Pure sine wave | ||
| Output Voltage | Inverter mode: 230VAC(??5% RMS), AVR mode: 200VAC-240VAC 220VAC(??5% RMS) | ||
| Output Power Factor | 0.7 | 0.6 | |
| Output Frequency | 50Hz/60Hz ??0.2 Hz | ||
| Inverting Efficiency (peak) | >85% | ||
| Mains Mode Efficiency | > 95% | ||
| Transfer Time | Typical 2~6ms 10ms(max) | ||
| AC INPUT | |||
| Input Voltage | 220/230VAC | ||
| Input Voltage Range | 140~280VAC??5% | ||
| Low Pressure Shutdown | 140VAC??5% | ||
| High Pressure Shutdown | 280VAC??5% | ||
| Low Frequency Shutdown | 45??0.2Hz(50Hz) | ||
| 55??0.2Hz(60Hz) | |||
| High Frequency Shutdown | 55??0.2Hz(50Hz) | ||
| 65??0.2Hz(60Hz) | |||
| Frequency Range | 50Hz/60Hz ??0.2HZ | ||
| BATTERY | |||
| Minimum Start Voltage | Battery under voltage shut-down point +0.5V | Battery under voltage shut-down point +1.0V | |
| Low Battery Alarm | Battery under voltage shut-down point +0.5V | Battery under voltage shut-down point +1.0V | |
| Low Battery Shutdown | (0.1V / 10-12.0VDC mode) User set | (0.2V / 20.0-24.0VDC mode) User set | |
| Battery High Voltage Alarm | Average Charge Voltage+1V | Average Charge Voltage +2V | |
| AC CHARGER | |||
| Float Voltage | 13.5 / 13.6 / 13.7VDC to set | 27.0 27.2 27.4VDC to set | |
| Average Charge Voltage | (0.1V each click ,13.8~14.5V mode) User set | (0.2V each click , 27.6~29V mode) User set | |
| Maximum Charge Current | 20A??2A | 25A??2A | 15A??2A |
| BYPASS & PROTECTION | |||
| Input Frequency | 50Hz / 60Hz | ||
| Low Frequency Switching | 45??1Hz | ||
| High Frequency Switching | 65??1Hz | ||
| Overload Protection | 110%~125%R load fault after 60s? 125% ~150%R load fault after 3s >150%R load fault after 500ms | ||
| Output Short Circuit Protection | Yes | ||
| Bypass Circuit Breaker Insurance | 10A | ||
| Maximum Current Bypass | 10A | 10A | |
| SOLAR CHARGER | |||
| Maximum PV Charge Current | 50A??5A | ||
| Battery Voltage | 12VDC | 24VDC | |
| Maximum PV Array Power | 150W*5 solar panels | 150W*10 solar panels | |
| Maximum PV Array Open Circuit Voltage | 55Vdc | 70Vdc | |
| Maximum Efficiency | > 95% | ||
| Standby Consumption | <2W | ||
| MECHANICAL SPECIFICATIONS | |||
| Assembly | Wall mount | ||
| Dimension (W*H*D) (mm) | 300.5*319*132.2 | ||
| Net Weight KG | 9.0 | 10.0 | 10.5 |
| Shipping Dimensions (mm) | 380.5*354*192.2 | ||
| Transport Weight KG | 10.0 | 11.0 | 11.5 |
| OTHER | |||
| Working Environment | 0??C~40??C 0~90% Relative humidity (non-condensing) | ||
| Noise | Less than 60db | ||
| Display | LED + LCD | ||
